LTM 80 (P/F/M)


           LTM 80 (P/F/M)

Characteristics:

  •  travel range standard version: 70 / 95 / 145 / 195 / 295 mm
  •  travel range version P with laterally mounted drive - same as standard version
  •  travel range version F with folding bellow: 50 / 70 / 105 / 135 / 210 mm
  •  travel range version M with metal covering: 45 / 70 / 120 / 170 / 270 mm
  •  designed for industrial applications
  •  ground fine-thread spindle with low backlash
  •  carriage with ground and stainless recirculating ball bearing guides
  •  Hall-effect or mechanical limit switches
  •  2-phase step motor or DC motor with encoder
  •  deformation-resistant aluminium
  •  reflection-poor, black anodized

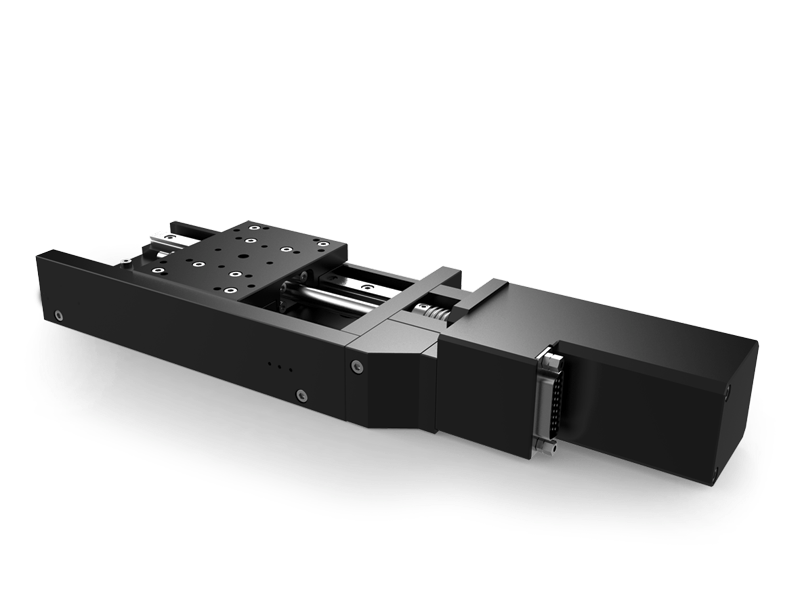

The economically priced linear stages LTM 80 are particularly suitable for continuous operation and installation in machines.

The special guides provide practically slip-stick free movement as well as high load capacity. The material combination of spindle and nut ensures low abrasion and a long life.

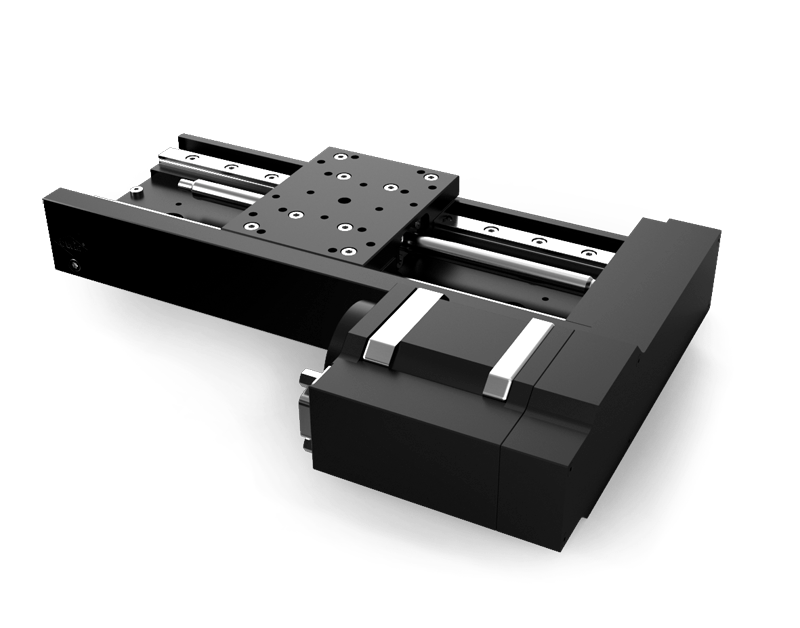

In the versions of the LTM 80P, the drive is mounted laterally in parallel, allowing a large travel range with a small footprint.

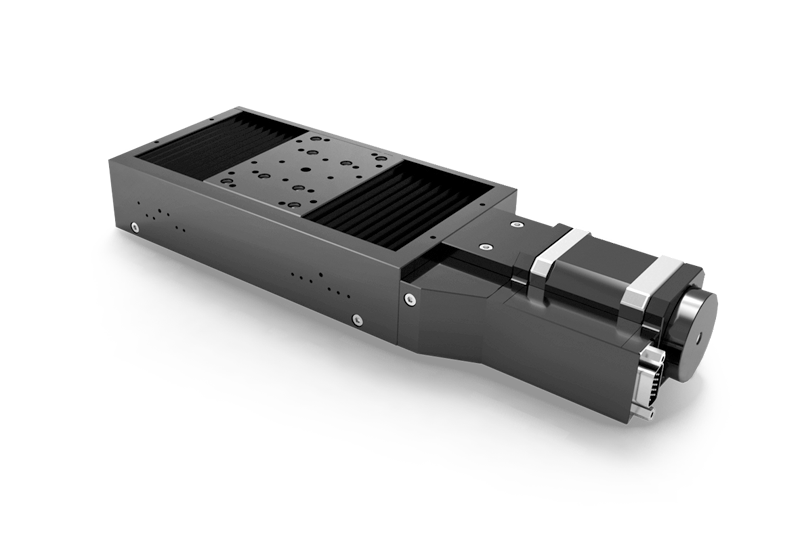

The versions of the LTM 80F have additional integrated folding bellows, which protect the guide and spindle.

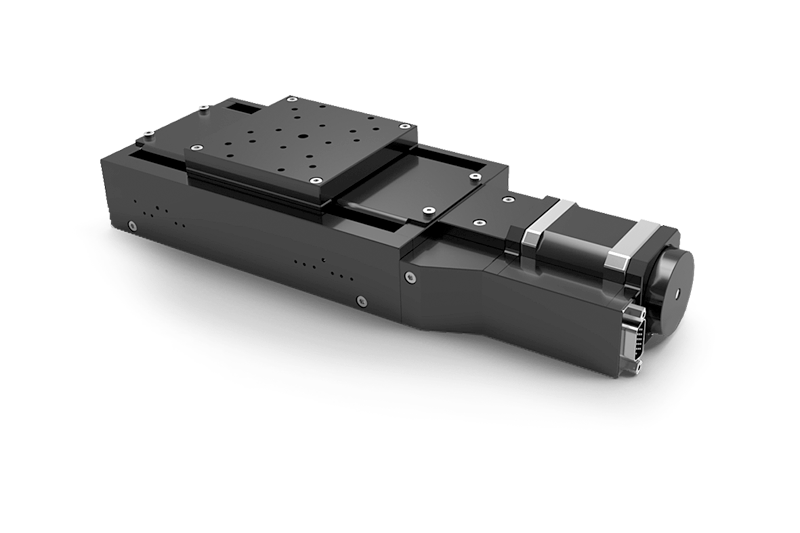

The versions of the LTM 80M have an additional metal cover, which protects the guide and spindle. Compared to the other LTMs in the 80 series, these have a wider slide and thus a larger pick-up area for loads with an applied mass moment of inertia.

All aluminum parts have a top-quality black anodized protective coating.
