LTM 60 (P/F/M)


         LTM 60 (P/F/M)

Characteristics:

  • travel range standard version: 25 / 50 / 70 / 95 / 145 mm
  • travel range version P with laterally mounted drive - same as standard version
  • travel range version F with folding bellow: 20 / 40 / 50 / 70 / 105 mm
  • travel range version M with metal covering: 20 / 45 / 65 / 90 / 140 mm
  • designed for industrial applications
  • ground fine-thread spindle with low backlash
  • carriage with ground and stainless recirculating ball bearing guides
  • Hall-effect or mechanical limit switches

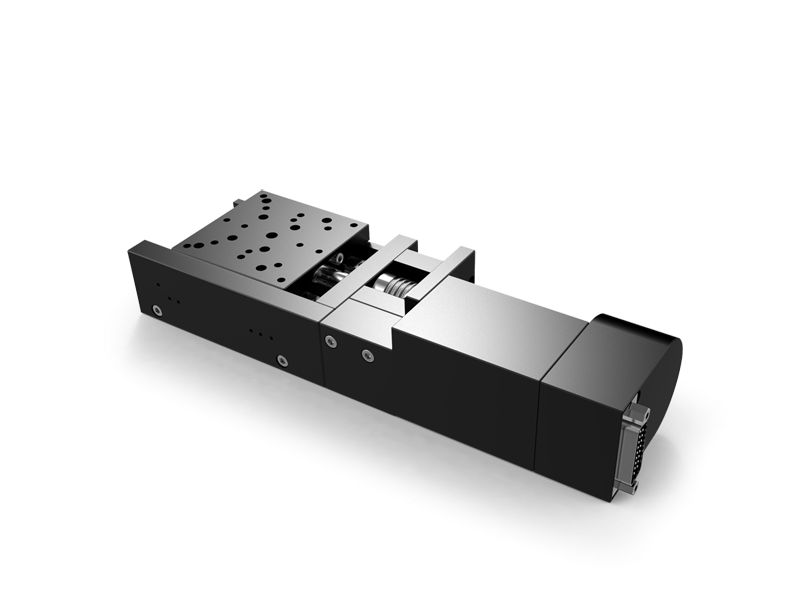

  • 2-phase step motor or DC motor with encoder
  • deformation-resistant aluminium
  • reflection-poor, black anodized


The economically priced linear stages LTM 60 are particularly suitable for continuous operation and installation in machines.

The special guides provide practically slip-stick free movement as well as high load capacity. The material combination of spindle and nut ensures low abrasion and a long life.

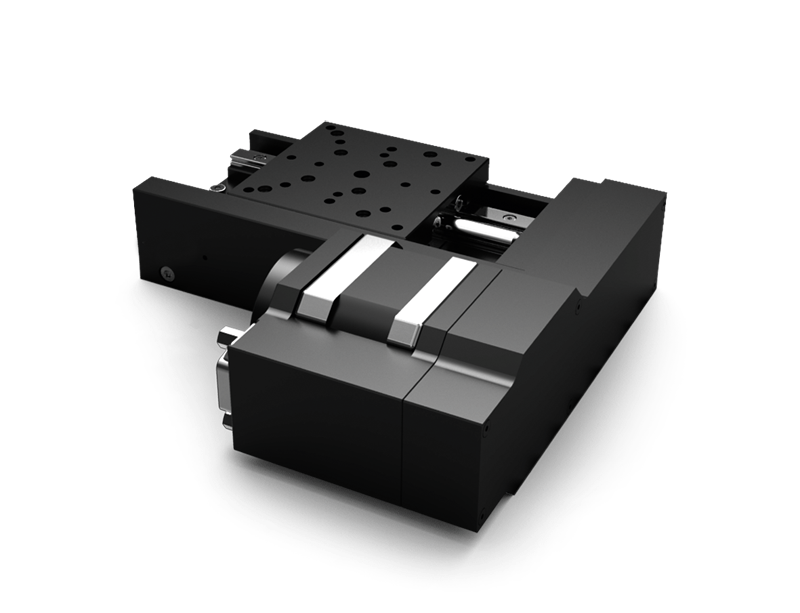

In the versions of the LTM 60P, the drive is mounted laterally in parallel, allowing a large travel range with a small footprint.

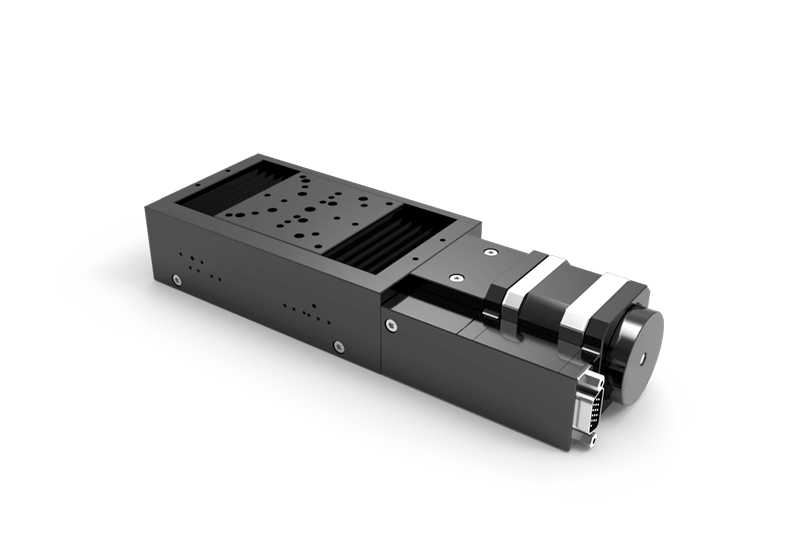

The versions of the LTM 60F have additional integrated folding bellows, which protect the guide and spindle.

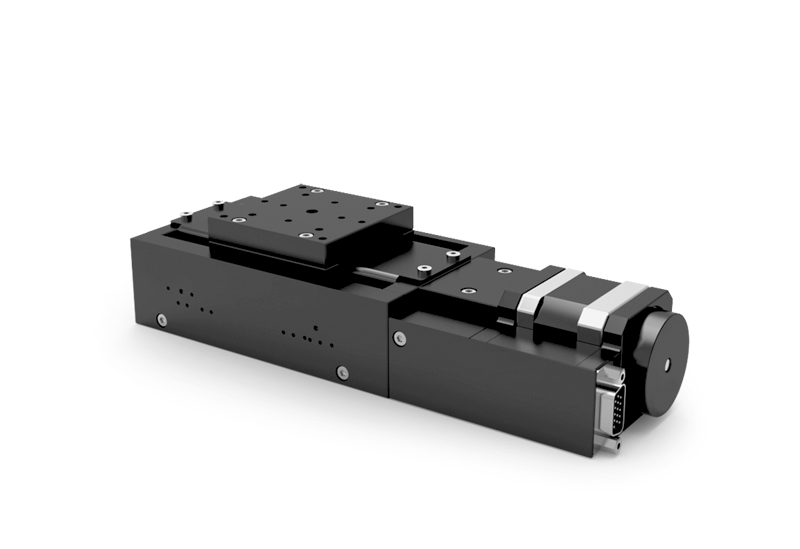

The versions of the LTM 60M have an additional metal cover, which protects the guide and spindle.

All aluminum parts have a top-quality black anodized protective coating.
