Characteristics:
- travel range standard version: 85 / 135 / 235 / 295 / 395 mm
- travel range version F with folding bellow: 50 / 80 / 155 / 195 / 260 mm
- travel range version M with metal covering: 80 / 130 / 230 / 290 / 390 mm
- designed for industrial applications
- ground fine-thread spindle with low backlash
- carriage with ground and stainless recirculating ball bearing guides
- Hall-effect or mechanical limit switches
- 2-phase step motor or DC motor with encoder
- deformation-resistant aluminium
- reflection-poor, black anodized

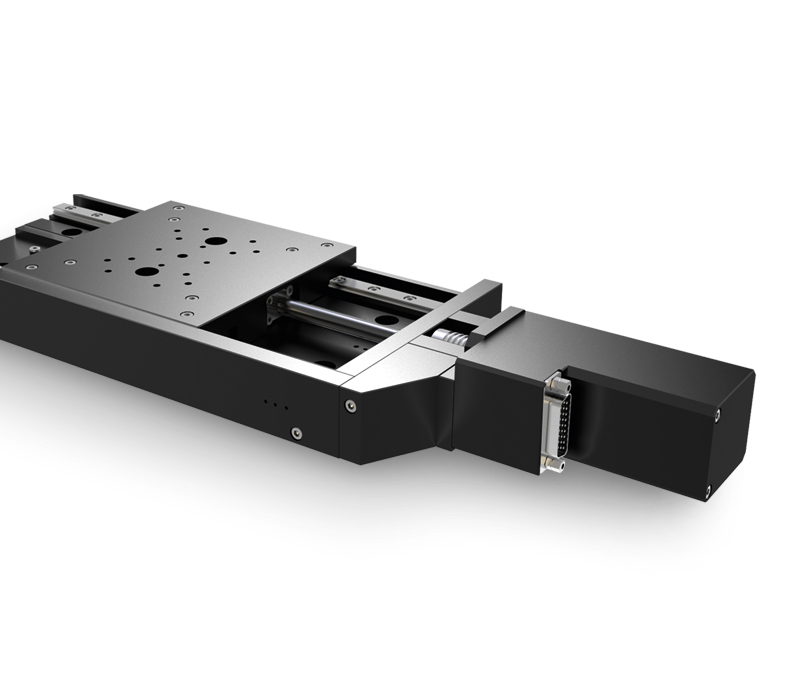

The economically priced linear stages LTM 120 are particularly suitable for continuous operation and installation in machines.
The special guides provide practically slip-stick free movement as well as high load capacity. The material combination of spindle and nut ensures low abrasion and a long life.

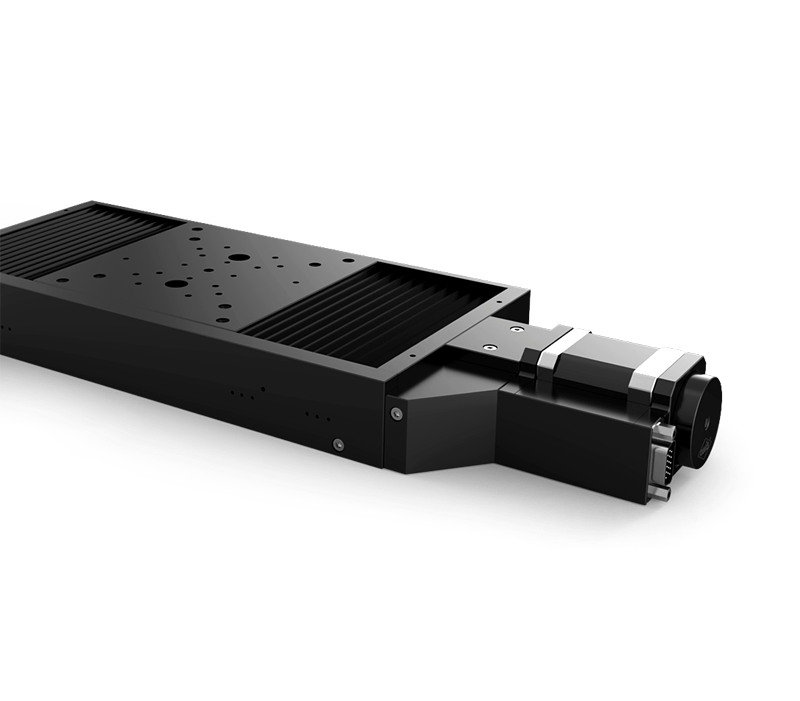

The versions of the LTM 120F have additional integrated folding bellows, which protect the guide and spindle.

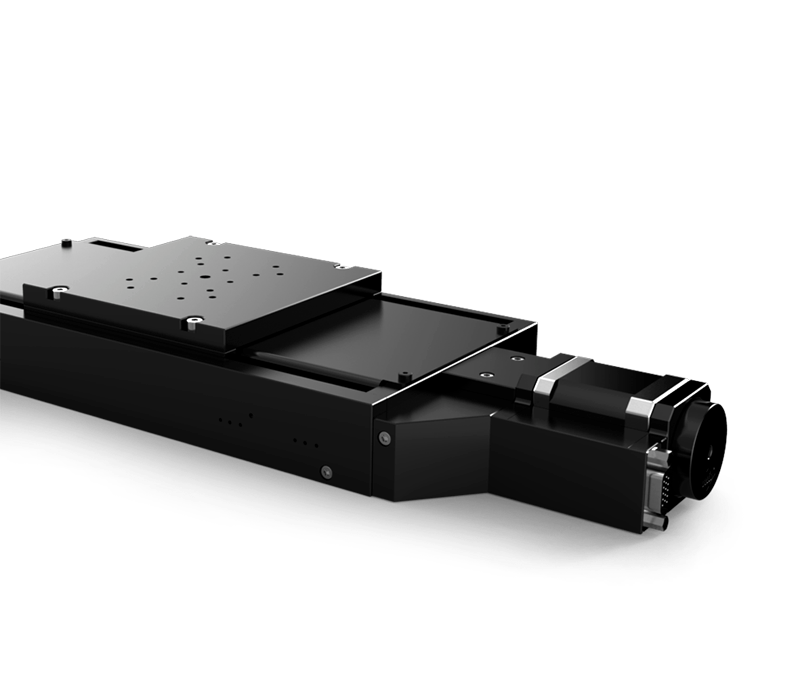

The versions of the LTM 120M have an additional metal cover, which protects the guide and spindle.
All aluminum parts have a top-quality black anodized protective coating.
