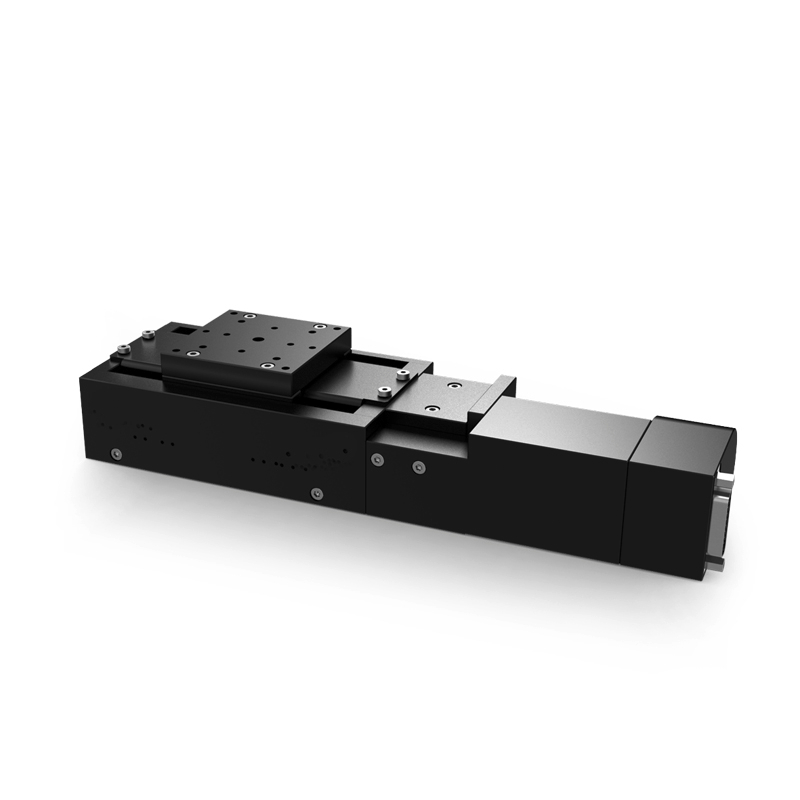

LIMES 64


            LIMES 64

Characteristics:

  •  travel range 20 / 45 / 65 / 90 / 140 mm
  •  designed for industrial applications
  •  with metal covering
  •  ball screw with low backlash
  •  carriage with ground and stainless recirculating ball bearing guides
  •  Hall-effect or mechanical limit switches
  •  2-phase step motor or DC motor with encoder
  •  deformation-resistant aluminium
  •  reflection-poor, black anodized



Options:


  •  brake
  •  linear measuring system




The LIMES 64 linear stages are characterized by high precision, which is necessary for demanding R&D applications. Due to the integrated metal covering as well as their suitability for continuous operation, the linear stages of the LIMES series are the ideal choice for industrial applications.

The low-backlash guides provide optimal motion as well as a high load capacity. The ball screw is preloaded and ensures high-precision movement as well as a long life.

The integrated metal covering protects the high-quality guides and the ball screw. All aluminum parts have a top quality black anodized protective coating.
