Characteristics:

•  travel range 20 / 40 / 50 / 70 / 105 mm
•  designed for industrial applications
•  with folding bellow
•  ball screw with low backlash
•  carriage with ground and stainless recirculating ball bearing guides
•  Hall-effect or mechanical limit switches
•  2-phase step motor or DC motor with encoder
•  deformation-resistant aluminium
•  reflection-poor, black anodized



Options:

•  brake
•  linear measuring system

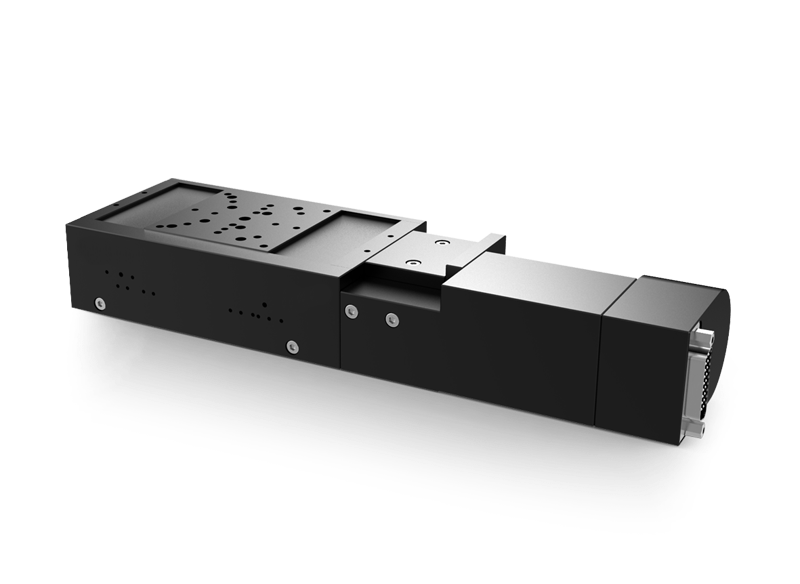

The LIMES 60 linear stages are characterized by high precision, which is necessary for demanding R&D applications. Due to the integrated folding below as well as their suitability for continuous operation, the linear stages of the LIMES series are the ideal choice for industrial applications.

The low-backlash guides provide optimal motion as well as a high load capacity. The ball screw is preloaded and ensures high-precision movement as well as a long life.

The integrated folding bellow protects the high-quality guides and the ball screw. All aluminum parts have a top quality black anodized protective coating.
