Characteristics:
- travel range 400 / 600 / 1000 / 1500 mm
- designed for industrial applications
- with metal covering
- ball screw with low backlash
- carriage with ground and stainless recirculating ball bearing guides
- Hall-effect limit switches

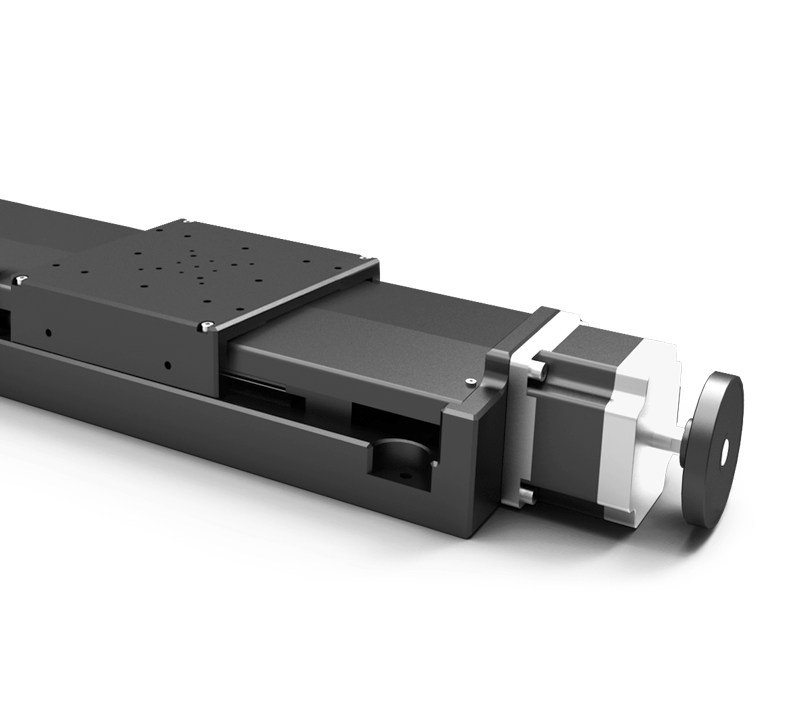

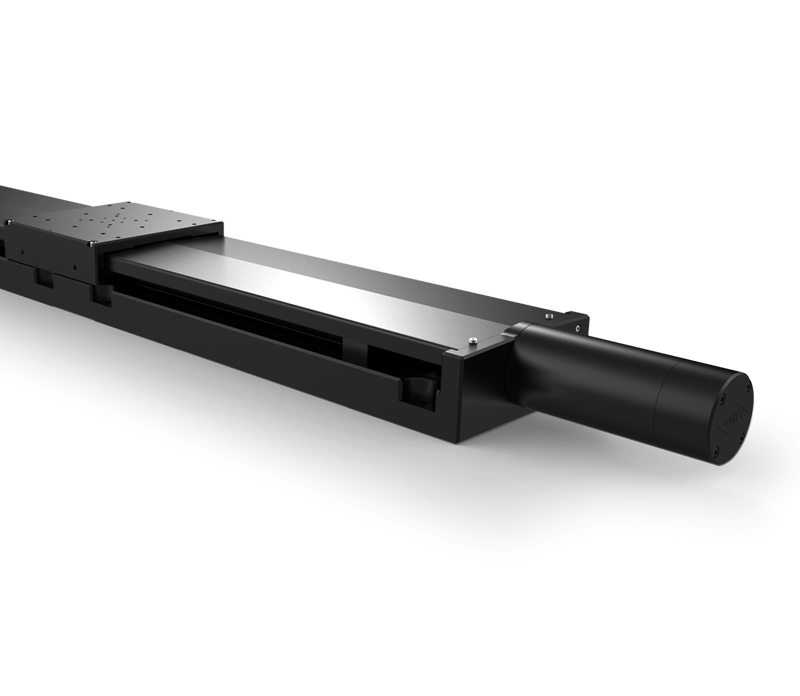

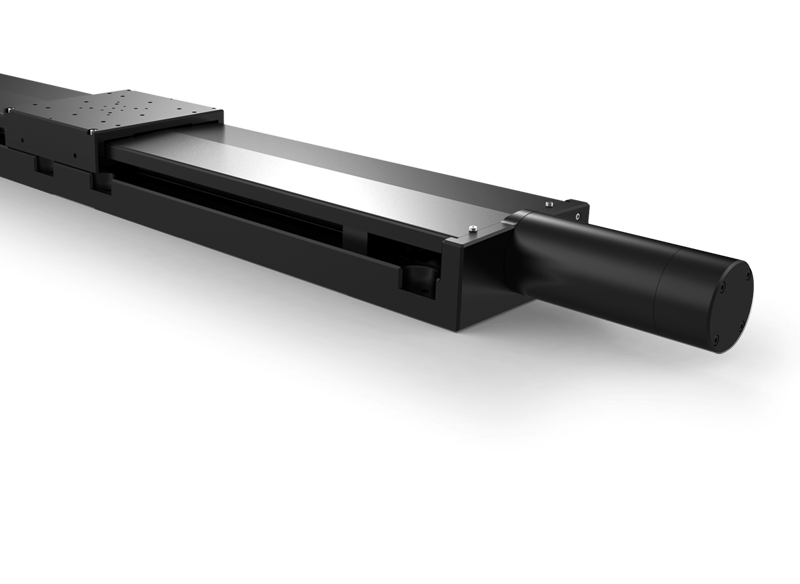

- 2-phase step motor or DC motor with encoder
- deformation-resistant aluminium
- reflection-poor, black anodized
Options:
- brake
- version with an integrated linear measuring system (LIMES 170-IMS)
- mechanical limit switches
The linear stages of the series LIMES 170 are characterized by high precision and very high positioning requirements. Due to the integrated metal covering as well as their suitability for continuous operation, the linear stages LIMES 170 of the LIMES series are the ideal choice for R&D and industrial applications.
The almost backlash-free guides provide optimal motion as well as high load capacity. The high quality drive and the preloaded ball screw ensure high-precision movement as well as a long life time.The integrated metal covering protects the high-quality guides and ball screw.
With the version with the integrated linear measuring system LIMES 170-IMS, accurate position feedback with the highest resolution is provided at any time. All aluminium parts have a top quality black anodized protective coating.
