Characteristics:
- travel range 30 mm
- designed for industrial applications
- low-backlash ball screw
- carriage with ground and stainless recirculating ball bearing guides
- Hall-effect or mechanical limit switches
- 2-phase step motor or DC motor with encoder
- deformation-resistant aluminium
- reflection-poor, black anodized
Options:
- brake
- version with integrated linear measuring system (HUMES 150-IMS)

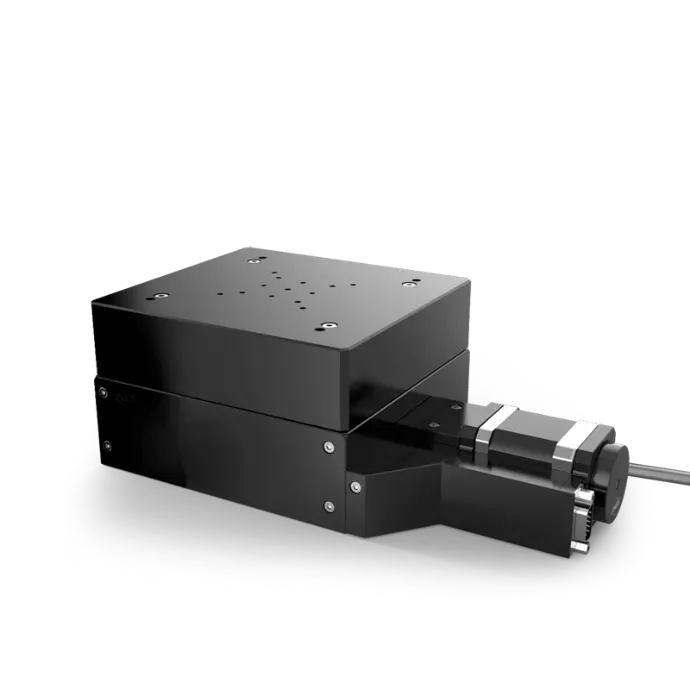

The HUMES 150 elevator stages provide high-precision positioning also for heavy loads. To achieve high accuracy, the HUMES 150 is equipped with components made with high precision. Optionally, an integrable measurement system returns accurate position feedback with the highest resolution.
The spindle driven guiding system allows mounting in horizontal travel directions as well as upside down applications. The miniature guides enable a high load on the elevator stages. Travel ranges of 30 mm may be realized with high resolution. Depending on the requirements of the application, a step motor or a DC servo motor can be selected. For protection of the mechanics, Hall-effect or mechanical limit switches are integrated.
The top quality black anodized protective coating of the aluminum parts prevents reflections or stray light almost completely.
