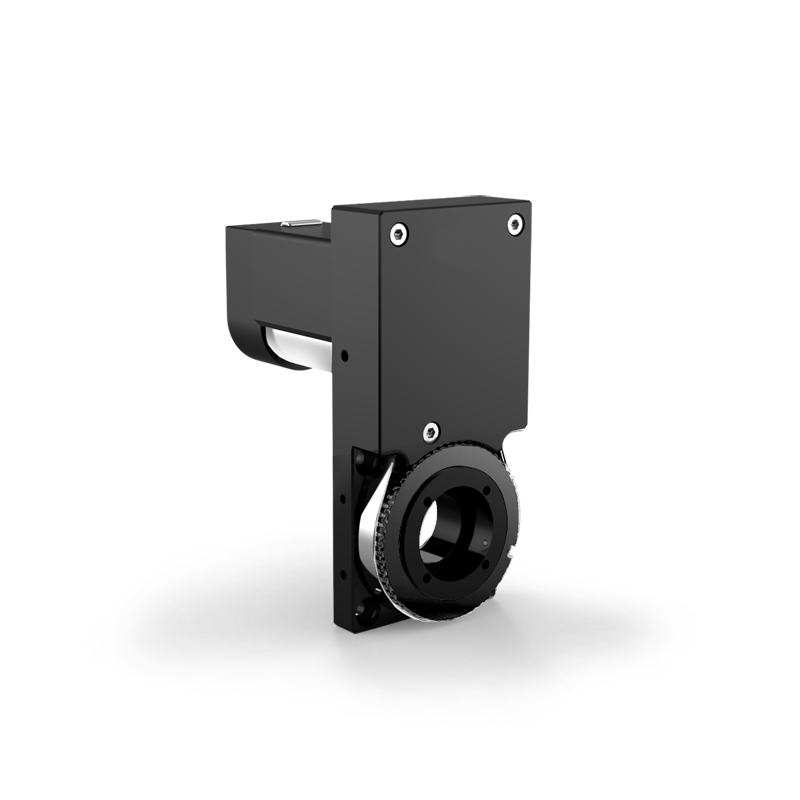

DRTM 40

          DRTM 40

Characteristics:

  • for use with SYS 40
  • retainer ø 25 mm and aperture ø 20 mm
  • precision four point contact ball bearings
  • synchronous tooth belt drive
  • Hall-effect reference switch
  • 2-phase step motor or DC motor with encoder
  • deformation-resistant aluminium
  • reflection-poor, black anodized


Options:

  • brake
  • version with an integrated linear measuring system (HUMES 200-IMS)




The tooth belt driven DRTM 40 rotary stages allow, in comparison to the DMT 40, a significantly higher rotational speed, though with lower resolution.



They are suitable for both horizontal and vertical rotation axes. The precision ball bearings and the preloaded belt drives allow low-backlash positioning. The DRTM 40 is for use with SYS 40. They are available with two different motorizations and have an integrated reference switch.



All aluminum parts have a top quality black anodized protective coating.
