Characteristics:
- for use with SYS 65
- rotary table with retainer, aperture or M6 threaded hole
- precision angular contact ball bearings
- preloaded worm gear
- Hall-effect reference switch
- 2-phase step motor or DC motor with encoder
- deformation-resistant aluminium
- reflection-poor, black anodize
Option:
- mechanical limit switches

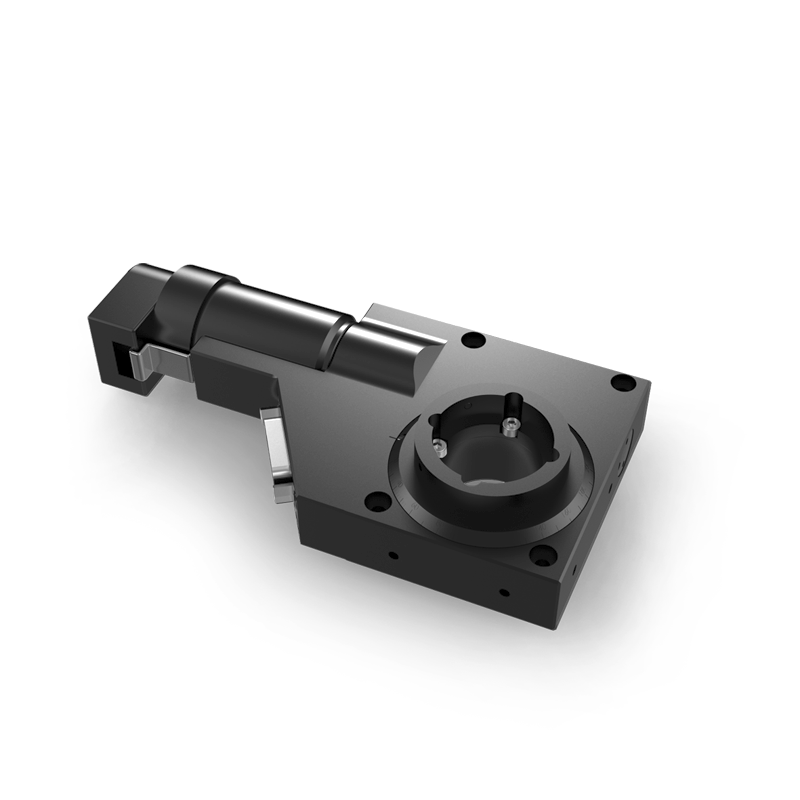

The rotary measuring stages DMT 65 allow unlimited rotation angles at resolutions of less than one angular minute. They are suitable for both horizontal as well as vertical rotation axes.
The precision ball bearings and the worm gear are preloaded for low-backlash positioning. The rotary measuring stages are available with different motorizations.
When mounted on the slide RT 65-20, the DMT 65 is for use with the SYS 65. All aluminium parts have a top quality black anodized protective coating.
