DMT 200N (-IMS)

            DMT 200N (-IMS)

Characteristics:

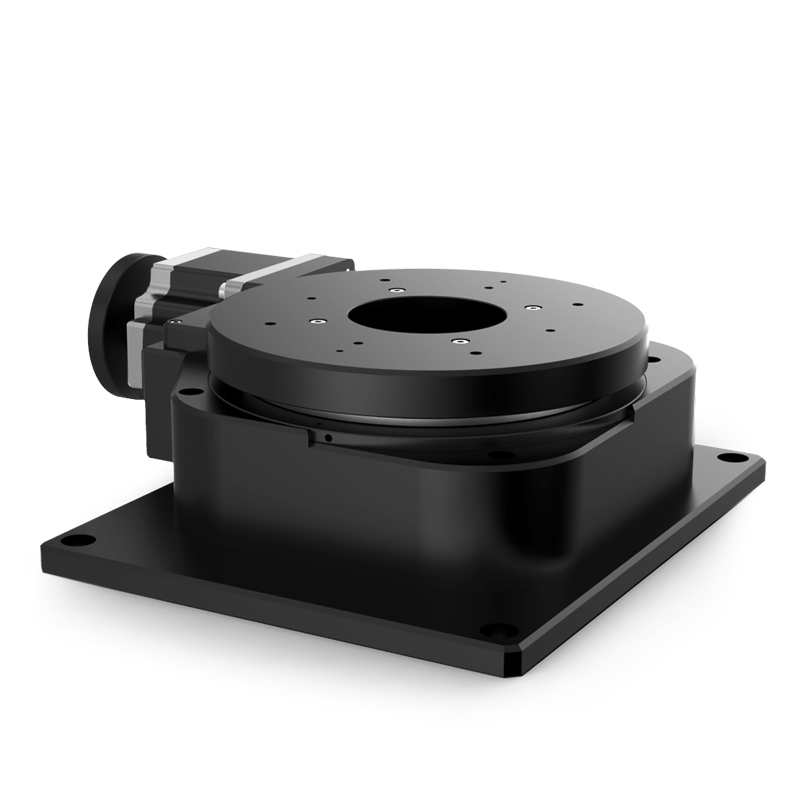

  • rotary table with aperture ø 70 / 90 mm or M6 center bore
  • precision angular contact ball bearings
  • preloaded worm gear
  • Hall-effect or mechanical reference switch

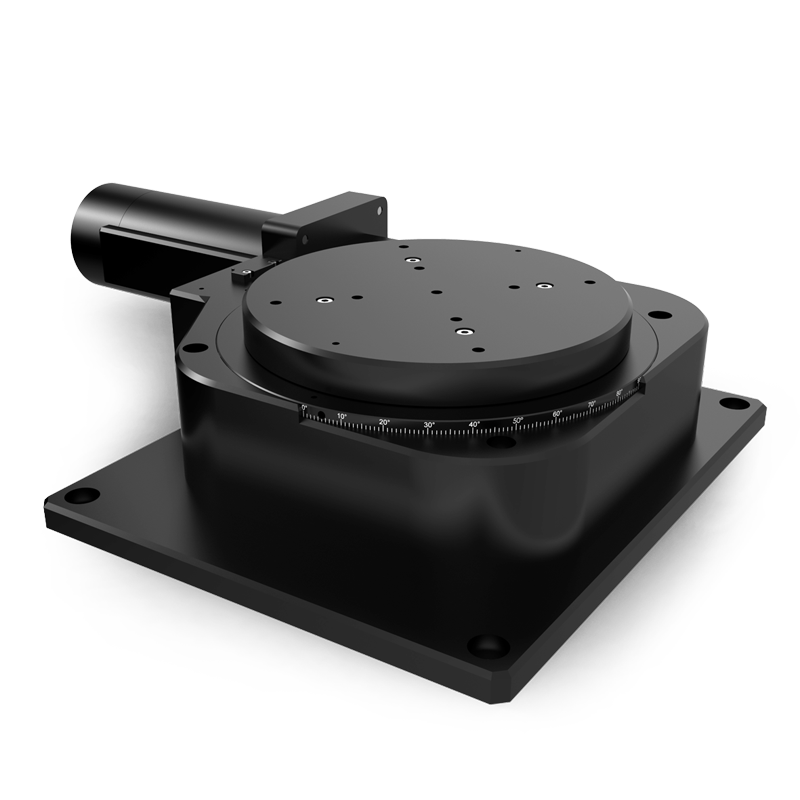

  • 2-phase step motor or DC motor with encoder
  • deformation-resistant aluminium
  • reflection-poor, black anodized




Option:


  • version with an integrated angular measuring system (DMT 200N-IMS)


The rotary measuring stages DMT 200N allow unlimited rotation angles and are suitable for both horizontal and vertical rotation axes. The precision ball bearings and the worm gear are preloaded for low-backlash positioning.



The rotary measuring stages are available with different motorizations and also with an integrated angular measuring system (resolution  0,001° ) as DMT 200N-IMS.



All aluminum parts have a top quality black anodized protective coating.
