Characteristics:
- rotary table with an aperture ø 56 mm
- precision angular contact ball bearings
- preloaded worm gear
- Hall-effect reference switch
- 2-phase step motor or DC motor with encoder
- deformation-resistant aluminium
- reflection-poor, black anodized
Option:
- mechanical limit switches
- angular measuring system

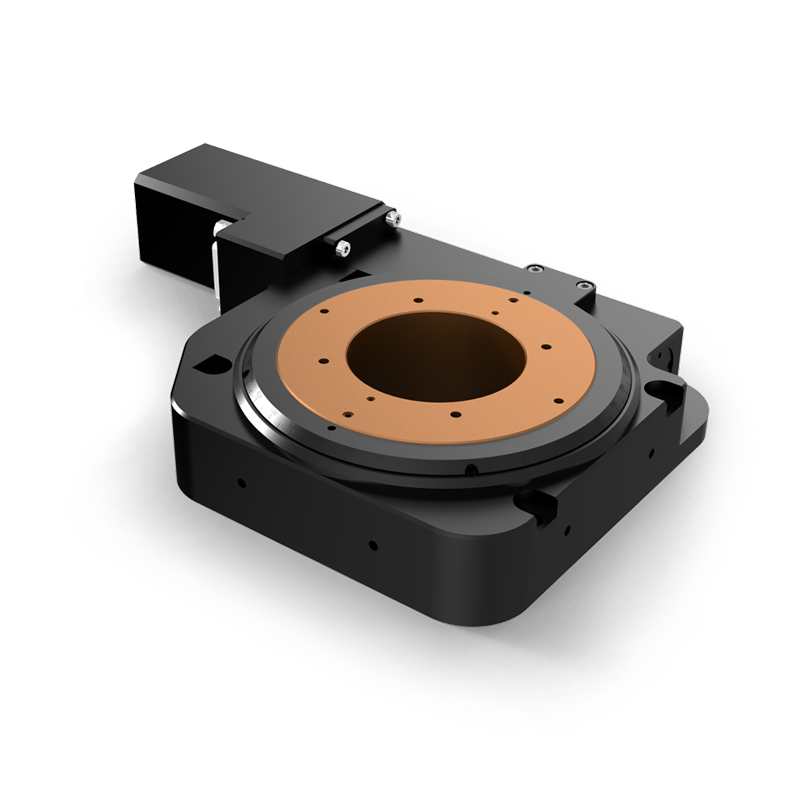

The rotary measuring stages DMT 130N allow unlimited rotation angles at resolutions of less than one angular minute. They are suitable for both horizontal as well as vertical rotation axes.
The precision ball bearings and the worm gear are preloaded for low-backlash positioning. The rotary measuring stages are available with different motorizations.
All aluminum parts have a top quality black anodized protective coating.
