DMT 100 (-IMS)

           DMT 100 (-IMS)

Characteristics:

  • rotary table with aperture ø 53 mm / ø 43 mm for version with measuring system
  • precision angular contact ball bearings
  • preloaded worm gear
  • Hall-effect reference switch

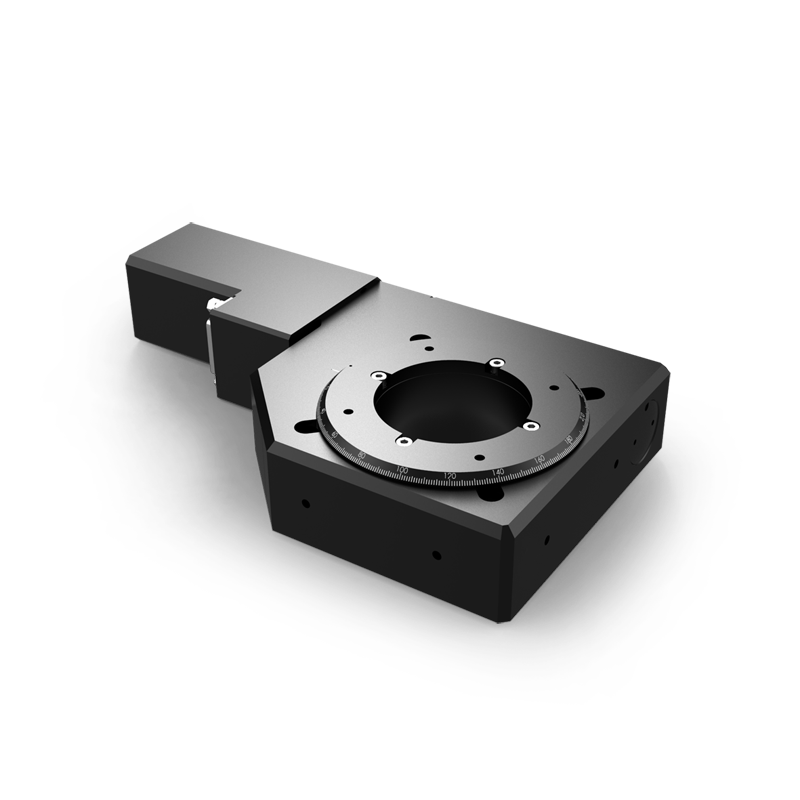

  • 2-phase step motor or DC motor with encoder
  • deformation-resistant aluminium
  • reflection-poor, black anodized




Options:

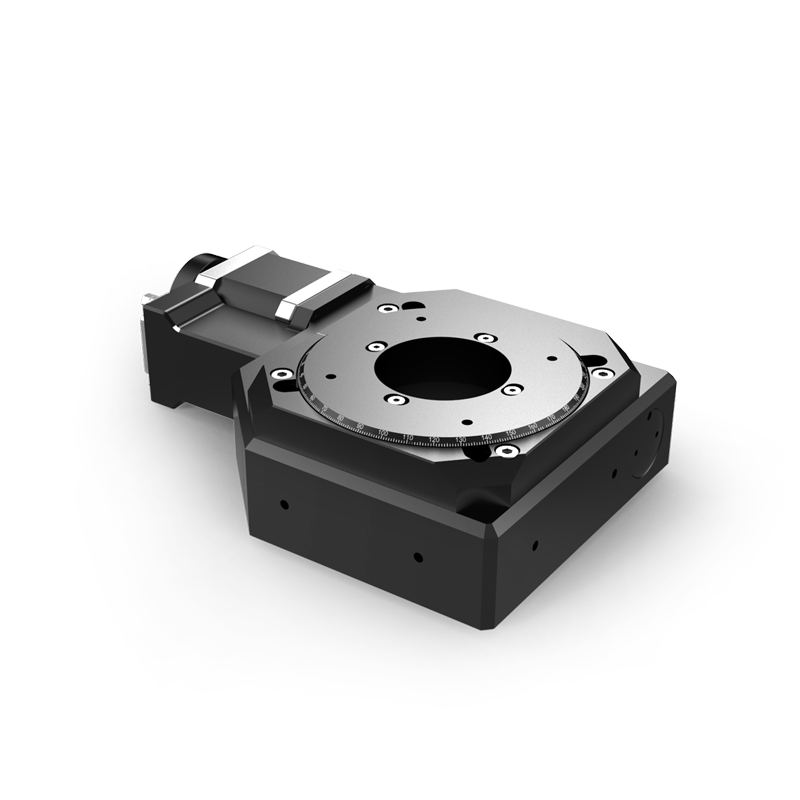

  • version with an integrated angular measuring system (DMT 100-IMS)
  • mechanical limit switches for versions without an angular measuring system (DMT 100)


The rotary measuring stages DMT 100 allow unlimited rotation angles at resolutions of less than one angular minute. They are suitable for both horizontal as well as vertical rotation axes.



The precision ball bearings and the worm gear are preloaded for low-backlash positioning.



The rotary measuring stages are available with different motorizations and as DMT 100-IMS with an integrated angular measuring system.



All aluminum parts have a top quality black anodized protective coating.
