- Adjusts to the default focus height automatically, improving operation efficiency,
- Includes the auto-focusing control board and software,

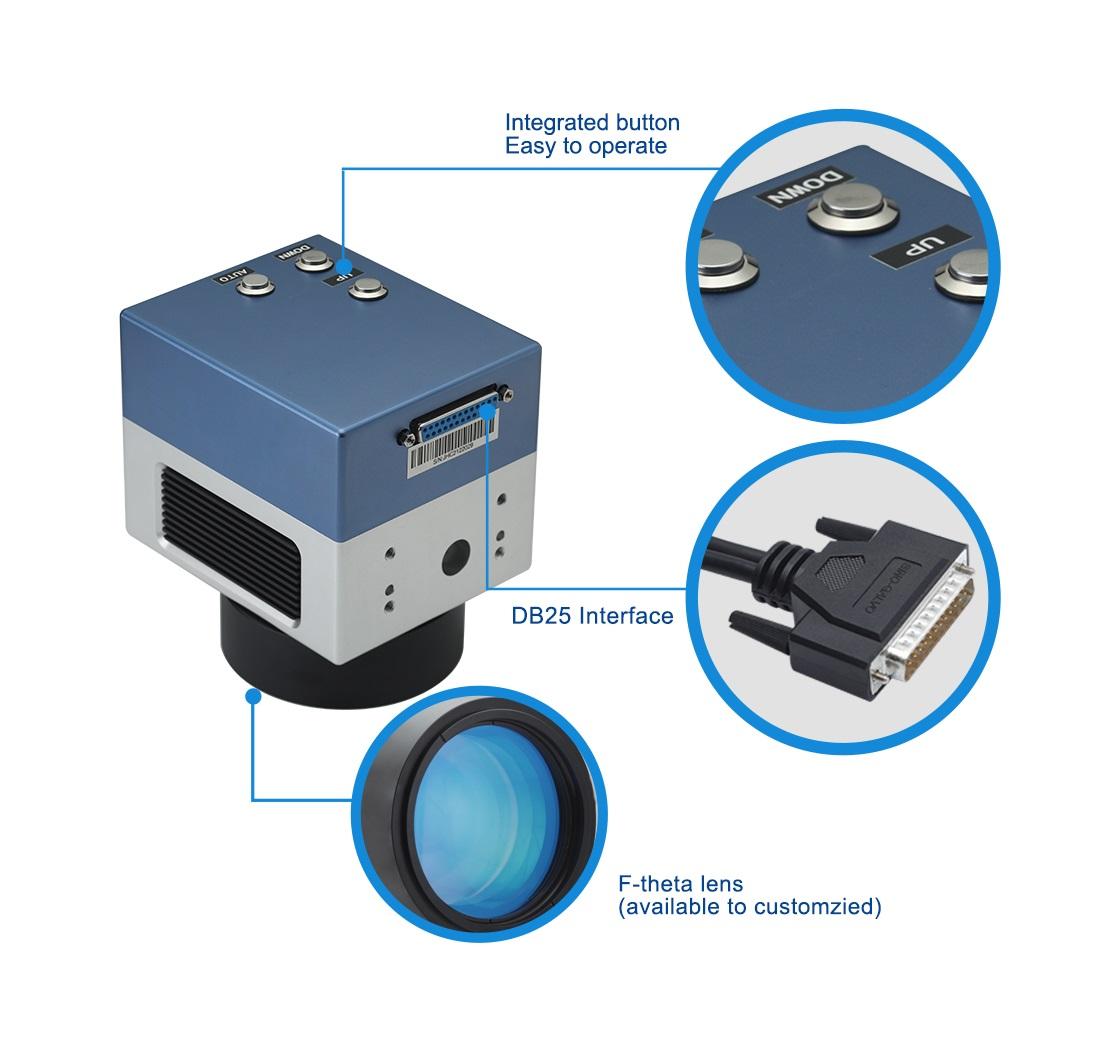

- The top integrated button is optional.

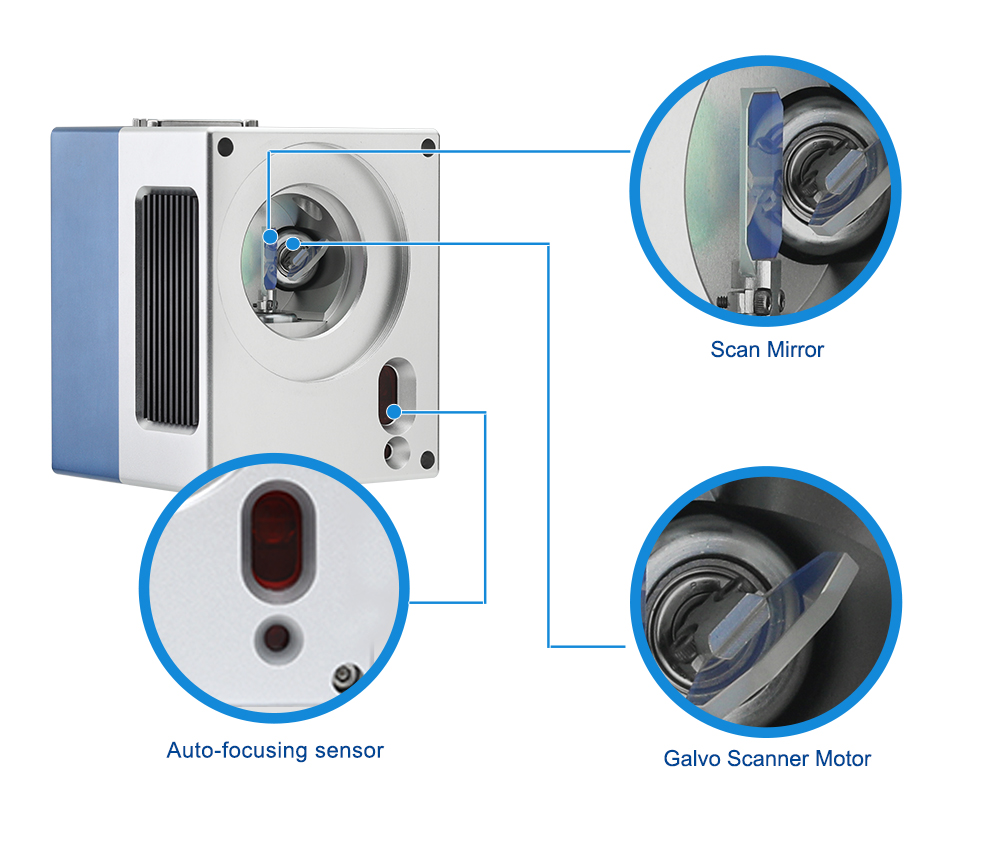

The auto-focusing module sensor (installed in the galvanometer housing) consists of:
- Ranging module: to measure the distance between the Galvo scanner and the final object,
- Stepping motor: adjusting galvo scanner height,
- Stepper motor driver,
- Control board control the operation of the entire autofocus system,
- Keys include include up, down, and start keys.
