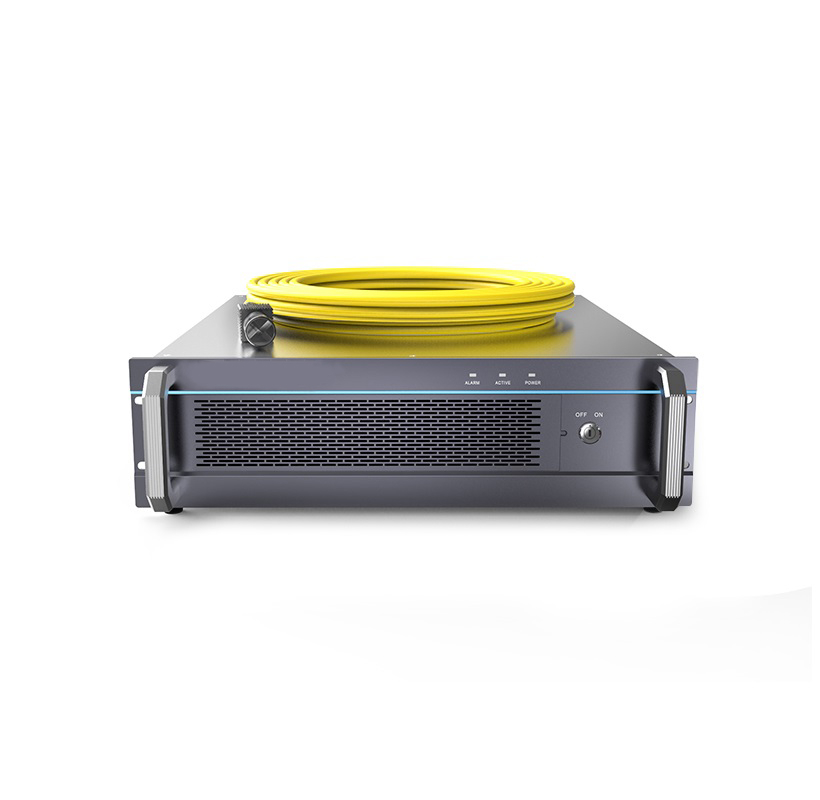

100M+-300M+ MOPA PULSED FIBER LASER


100M+-300M+ MOPA PULSED FIBER LASER


Product Description

The MOPA pulsed fiber lasers are designed based on MOPA structures; the pulse width and frequency can be adjusted, which makes more application possible. The pulse width could be adjusted from 10-500 ns, the peak power could reach up to 10 KW, and the frequency could reach up to 4000 kHz. The MOPA pulse fiber laser is ideal for alumina black marking, stainless steel multicolor marking, plastic marking, fine removal, laser engraving, etc.

 New Generation Optical
Path Design

New core technology of
fiber gain control
 High Output Power
Greatly improved single
pulse energy
 Wide Application Even with Highly Reflective Material
High performance isolator reduces reflection damage to the laser source
smoothly marking on aluminum, copper and brass etc.
  Compact and Rugged Design
Maintenance free operations

  Carbon Steel Derusting

Sheet Metal Welding
Inductive Coil

Paint Removing

Metal Precision Welding

Shrapnel Welding

 Aluminium Engraving

Battery Pole Ear Welding

Solar Wafer Scribing

Battery Pole Ear Cutting
